电动工具、扫地机
典型方案 |
Product Name |
N/P |
Package |
VDS(V) |
VGS(V) |
VGS(th)(V) |
ID(A) |
RDS(on)(mΩ) / Typ.
(typ)(@10V)
(typ)(@4.5V)
(typ)(@2.5V)
|
Status |
Marking |
PCS/Reel |
PCS/CTN. |
|
WP9926L
3串 |
N |
SOP8 |
20 |
±12 |
0.7 |
6 |
|
19 |
23 |
MP |
9926 |
4,000 |
48,000 |
|
WP2030K
3串 |
N |
TO-252 |
20 |
±12 |
0.75 |
30 |
|
8 |
12 |
ENG |
WP2030A |
2,500 |
25,000 |
|
WP2060A
3串 |
N |
TO-252 |
20 |
±12 |
0.7 |
60 |
|
4.8 |
7.5 |
MP |
WP2060A |
2,500 |
25,000 |
|
WP2090K
3串 |
N |
TO-252 |
20 |
±12 |
0.7 |
90 |
|
2.4 |
3.6 |
MP |
WP2090A |
2,500 |
25,000 |
|
WP2090A
3串 |
N |
TO-252 |
20 |
±12 |
0.7 |
90 |
|
3.2 |
4.7 |
MP |
WP2090A |
2,500 |
25,000 |
|
WP20100A
3串 |
N |
TO-252 |
20 |
±12 |
0.7 |
100 |
|
2.9 |
5.1 |
ENG |
WP20100A |
2,500 |
25,000 |
|
WP20H20K
3串 |
N |
TO-252 |
20 |
±12 |
0.7 |
120 |
|
1.9 |
2.7 |
ENG |
WP20H20K |
2,500 |
25,000 |
|
WP20120
3串 |
N |
TO-252 |
20 |
±12 |
0.7 |
120 |
|
2 |
3.1 |
MP |
WP20120 |
2,500 |
25,000 |
|
WP3060A
4串、5串 |
N |
TO-252 |
30 |
±20 |
1.7 |
60 |
6.8 |
14.5 |
|
MP |
WP3060A |
2,500 |
25,000 |
|
WP3080K
4串、5串 |
N |
TO-252 |
30 |
±20 |
1.5 |
80 |
3.8 |
7.1 |
|
MP |
WP3080A |
2,500 |
25,000 |
|
WP3080A
4串、5串 |
N |
TO-252 |
30 |
±20 |
1.6 |
80 |
4 |
8.2 |
|
MP |
WP3080A |
2,500 |
25,000 |
|
WP3090K
4串、5串 |
N |
TO-252 |
30 |
±20 |
1.5 |
90 |
2.8 |
4.2 |
|
MP |
WP3090K |
2,500 |
25,000 |
|
WP3090A
4串、5串 |
N |
TO-252 |
30 |
±20 |
1.5 |
90 |
3.2 |
6.4 |
|
MP |
WP3090A |
2,500 |
25,000 |
|
WP30H00K
4串、5串 |
N |
TO-252 |
30 |
±20 |
1.5 |
100 |
2.5 |
4.4 |
|
ENG |
WP30H00K |
2,500 |
25,000 |
|
WP30100
4串、5串 |
N |
TO-252 |
30 |
±20 |
1.5 |
100 |
2.7 |
4.6 |
|
MP |
WP30100 |
2,500 |
25,000 |
|
WP30H20K
4串、5串 |
N |
TO-252 |
30 |
±20 |
1.5 |
120 |
2.2 |
3.6 |
|
ENG |
WP30H20K |
2,500 |
25,000 |
|
WP30120
4串、5串 |
N |
TO-252 |
30 |
±20 |
1.5 |
120 |
2.3 |
3.6 |
|
MP |
WP30120 |
2,500 |
25,000 |
|
WP4459
4串、5串 |
P |
SOP8 |
-30 |
±20 |
-1.4 |
-6.5 |
25 |
35 |
|
MP |
4459 |
4,000 |
48,000 |
|
WP4015
6串、7串 |
N |
SOP8 |
40 |
±20 |
1.8 |
8 |
18 |
28 |
|
ENG |
4015 |
4,000 |
48,000 |
|
WP4882
6、7串 |
N |
SOP8 |
40 |
±20 |
1.85 |
9 |
17 |
25 |
|
ENG |
4882 |
4,000 |
48,000 |
|
WP4484
6、7串 |
N |
SOP8 |
40 |
±20 |
1.7 |
10 |
7.5 |
16 |
|
ENG |
4484 |
4,000 |
48,000 |
|
WP4080A
6串、7串 |
N |
TO-252 |
40 |
±20 |
1.6 |
80 |
4.8 |
7.5 |
|
MP |
WP4080A |
2,500 |
25,000 |
|
WP4080H
6串、7串 |
N |
TO-252 |
48 |
±20 |
1.6 |
80 |
6 |
10.6 |
|
MP |
WP4080H |
2,500 |
25,000 |
|
WP3401S3
6串、7串 |
P |
SOT23-3 |
-30 |
±12 |
-0.9 |
-4 |
45 |
57 |
|
MP |
A19T |
3,000 |
120,000 |
|
WP3401AS3
6串、7串 |
P |
SOT23-3 |
-30 |
±12 |
-0.95 |
-4.2 |
38 |
48 |
|
ENG |
A19T |
3,000 |
120,000 |
|
WP3407AS3
6串、7串 |
P |
SOT23-3 |
-30 |
±20 |
-1.5 |
-4.2 |
39 |
58 |
|
ENG |
3407 |
3,000 |
120,000 |
|
WP30P03
6串、7串 |
P |
TO-252 |
-30 |
±20 |
-1.5 |
-30 |
26 |
36 |
|
MP |
WP30P03 |
2,500 |
25,000 |
储能
典型方案 |
Product Name |
N/P |
Package |
VDS(V) |
VGS(V) |
VGS(th)(V) |
ID(A) |
RDS(on)(mΩ) / Typ.
(typ)(@10V)
(typ)(@4.5V)
(typ)(@2.5V)
|
Status |
Marking |
PCS/Reel |
PCS/CTN. |
|
WP3040AP3
移动电源 |
N |
PDFN3x3 |
30 |
±20 |
1.5 |
40 |
4.7 |
9 |
|
MP |
WP3040AP3 |
5,000 |
50,000 |
|
WP3030AP3
移动电源 |
N |
PDFN3x3 |
30 |
±20 |
1.5 |
30 |
6.5 |
10 |
|
ENG |
WP3030AP3 |
5,000 |
50,000 |
|
WP3080KPA
移动电源 |
N |
PDFN5x6 |
30 |
±20 |
1.5 |
80 |
3.9 |
6.8 |
|
ENG |
WP3080KPA |
5,000 |
50,000 |
|
WP3080APA
移动电源 |
N |
PDFN5x6 |
30 |
±20 |
1.5 |
80 |
4.2 |
8 |
|
MP |
WP3080APA |
5,000 |
50,000 |
|
WP3090KPA
移动电源 |
N |
PDFN5x6 |
30 |
±20 |
1.5 |
90 |
2.9 |
4.8 |
|
ENG |
WP3090KPA |
5,000 |
50,000 |
|
WP3090APA
移动电源 |
N |
PDFN5x6 |
30 |
±20 |
1.5 |
90 |
3.2 |
6 |
|
MP |
WP3090APA |
5,000 |
50,000 |
|
WP30H00KPA
移动电源 |
N |
PDFN5x6 |
30 |
±20 |
1.5 |
100 |
2.5 |
4.4 |
|
ENG |
WP30H00KPA |
5,000 |
50,000 |
|
WP30H100
移动电源 |
N |
PDFN5x6 |
30 |
±20 |
1.5 |
100 |
2.3 |
4.5 |
|
MP |
WP30H100 |
5,000 |
50,000 |
|
WP30H20KPA
移动电源 |
N |
PDFN5x6 |
30 |
±20 |
1.85 |
120 |
1.8 |
3.5 |
|
ENG |
WP30H20KPA |
5,000 |
50,000 |
|
WP30H120
移动电源 |
N |
PDFN5x6 |
30 |
±20 |
1.5 |
120 |
2 |
3.6 |
|
MP |
WP30H120 |
5,000 |
50,000 |
|
WP4080APA
户外电源 |
N |
PDFN5x6 |
40 |
±20 |
1.6 |
80 |
4.8 |
7.5 |
|
MP |
WP4080APA |
5,000 |
50,000 |
|
WP4080HPA
户外电源 |
N |
PDFN5x6 |
45 |
±20 |
1.6 |
80 |
6 |
10.6 |
|
MP |
WP4080APA |
5,000 |
50,000 |
|
WP3030K
户外电源 |
N |
TO-252 |
30 |
±20 |
1.85 |
30 |
9.6 |
15.6 |
|
ENG |
WP3030A |
2,500 |
25,000 |
|
WP3060A
户外电源 |
N |
TO-252 |
30 |
±20 |
1.7 |
60 |
6.8 |
14.5 |
|
MP |
WP3060A |
2,500 |
25,000 |
|
WP3080K
户外电源 |
N |
TO-252 |
30 |
±20 |
1.5 |
80 |
3.8 |
7.1 |
|
MP |
WP3080A |
2,500 |
25,000 |
|
WP3080A
户外电源 |
N |
TO-252 |
30 |
±20 |
1.6 |
80 |
4 |
8.2 |
|
MP |
WP3080A |
2,500 |
25,000 |
|
WP3090K
户外电源 |
N |
TO-252 |
30 |
±20 |
1.5 |
90 |
2.8 |
4.2 |
|
MP |
WP3090A |
2,500 |
25,000 |
|
WP3090A
户外电源 |
N |
TO-252 |
30 |
±20 |
1.5 |
90 |
3.2 |
6.4 |
|
MP |
WP3090A |
2,500 |
25,000 |
|
WP30H00K
户外电源 |
N |
TO-252 |
30 |
±20 |
1.5 |
100 |
2.5 |
4.4 |
|
ENG |
WP30H00K |
2,500 |
25,000 |
|
WP30100
户外电源 |
N |
TO-252 |
30 |
±20 |
1.5 |
100 |
2.7 |
4.6 |
|
MP |
WP30100 |
2,500 |
25,000 |
|
WP30H20K
户外电源 |
N |
TO-252 |
30 |
±20 |
1.5 |
120 |
2.2 |
3.6 |
|
ENG |
WP30H20K |
2,500 |
25,000 |
|
WP30120
户外电源 |
N |
TO-252 |
30 |
±20 |
1.5 |
120 |
2.3 |
3.6 |
|
MP |
WP30120 |
2,500 |
25,000 |
|
WP4080A
户外电源 |
N |
TO-252 |
40 |
±20 |
1.6 |
80 |
4.8 |
7.5 |
|
MP |
WP4080A |
2,500 |
25,000 |
|
WP4080H
户外电源 |
N |
TO-252 |
48 |
±20 |
1.6 |
80 |
6 |
10.6 |
|
MP |
WP4080A |
2,500 |
25,000 |

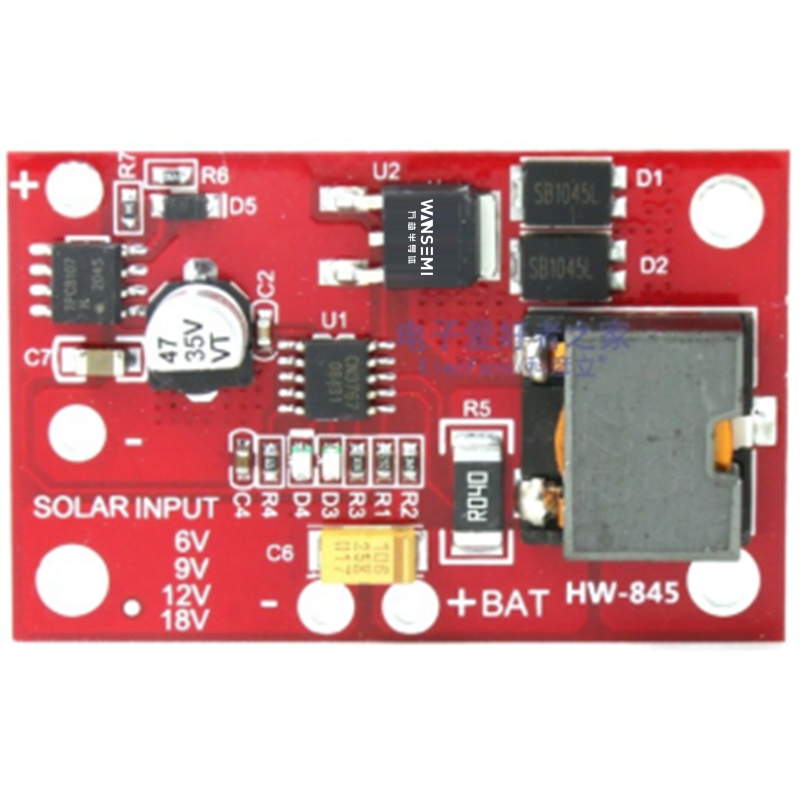

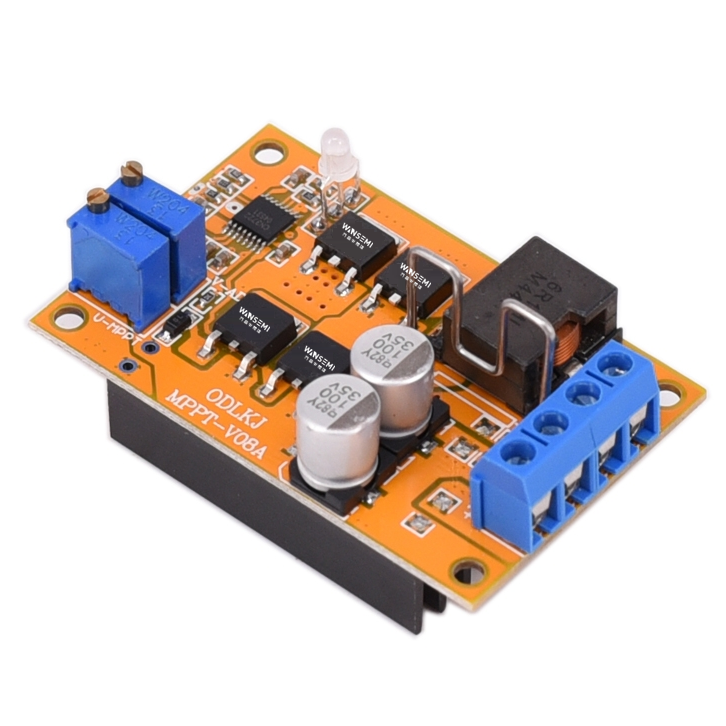

光伏控制器
典型方案 |
Product Name |
N/P |
Package |
VDS(V) |
VGS(V) |
VGS(th)(V) |
ID(A) |
RDS(on)(mΩ) / Typ.
(typ)(@10V)
(typ)(@4.5V)
(typ)(@2.5V)
|
Status |
Marking |
PCS/Reel |
PCS/CTN. |
|
WP2030K
12V/18V |
N |
TO-252 |
20 |
±12 |
0.75 |
30 |
|
8 |
12 |
ENG |
WP2030A |
2,500 |
25,000 |
|
WP2060A
12V/18V |
N |
TO-252 |
20 |
±12 |
0.7 |
60 |
|
4.8 |
7.5 |
MP |
WP2060A |
2,500 |
25,000 |
|
WP2090K
12V/18V |
N |
TO-252 |
20 |
±12 |
0.7 |
90 |
|
2.4 |
3.6 |
MP |
WP2090A |
2,500 |
25,000 |
|
WP2090A
12V/18V |
N |
TO-252 |
20 |
±12 |
0.7 |
90 |
|
3.2 |
4.7 |
MP |
WP2090A |
2,500 |
25,000 |
|
WP20100A
12V/18V |
N |
TO-252 |
20 |
±12 |
0.7 |
100 |
|
2.9 |
5.1 |
ENG |
WP20100A |
2,500 |
25,000 |
|
WP20H20K
12V/18V |
N |
TO-252 |
20 |
±12 |
0.7 |
120 |
|
1.9 |
2.7 |
ENG |
WP20H20K |
2,500 |
25,000 |
|
WP20120
12V/18V |
N |
TO-252 |
20 |
±12 |
0.7 |
120 |
|
2 |
3.1 |
MP |
WP20120 |
2,500 |
25,000 |
|
WP3060A
24V |
N |
TO-252 |
30 |
±20 |
1.7 |
60 |
6.8 |
14.5 |
|
MP |
WP3060A |
2,500 |
25,000 |
|
WP3080K
24V |
N |
TO-252 |
30 |
±20 |
1.5 |
80 |
3.8 |
7.1 |
|
MP |
WP3080A |
2,500 |
25,000 |
|
WP3080A
24V |
N |
TO-252 |
30 |
±20 |
1.6 |
80 |
4 |
8.2 |
|
MP |
WP3080A |
2,500 |
25,000 |
|
WP3090K
24V |
N |
TO-252 |
30 |
±20 |
1.5 |
90 |
2.8 |
4.2 |
|
MP |
WP3090A |
2,500 |
25,000 |
|
WP3090A
24V |
N |
TO-252 |
30 |
±20 |
1.5 |
90 |
3.2 |
6.4 |
|
MP |
WP3090A |
2,500 |
25,000 |
|
WP30H00K
24V |
N |
TO-252 |
30 |
±20 |
1.5 |
100 |
2.5 |
4.4 |
|
ENG |
WP30H00K |
2,500 |
25,000 |
|
WP30100
24V |
N |
TO-252 |
30 |
±20 |
1.5 |
100 |
2.7 |
4.6 |
|
MP |
WP30100 |
2,500 |
25,000 |
|
WP30H20K
24V |
N |
TO-252 |
30 |
±20 |
1.5 |
120 |
2.2 |
3.6 |
|
ENG |
WP30H20K |
2,500 |
25,000 |
|
WP30120
24V |
N |
TO-252 |
30 |
±20 |
1.5 |
120 |
2.3 |
3.6 |
|
MP |
WP30120 |
2,500 |
25,000 |
|
WP4080A
36V/48V |
N |
TO-252 |
40 |
±20 |
1.6 |
80 |
4.8 |
7.5 |
|
MP |
WP4080A |
2,500 |
25,000 |
|
WP4080H
36V/48V |
N |
TO-252 |
48 |
±20 |
1.6 |
80 |
6 |
10.6 |
|
MP |
WP4080A |
2,500 |
25,000 |
|
WP6050
36V/48V |
N |
TO-252 |
60 |
±20 |
1.5 |
50 |
14 |
17.5 |
|
ENG |
WP6050 |
2,500 |
25,000 |
